Needle Punched Felt Filter Coated With White Color TPU Membrane CIPP System

Needle Punched Felt Filter Coated With White Color TPU Membrane CIPP System

  • Needle Punched Felt Filter Coated With White Color TPU Membrane CIPP System
  • Needle Punched Felt Filter Coated With White Color TPU Membrane CIPP System
  • Needle Punched Felt Filter Coated With White Color TPU Membrane CIPP System
Needle Punched Felt Filter Coated With White Color TPU Membrane CIPP System
পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: Philis
সাক্ষ্যদান: ISO
Model Number: needle felt filter
প্রদান:
Minimum Order Quantity: 200 meters
মূল্য: Negotiable
Packaging Details: standard export package
Delivery Time: within 10 days
Payment Terms: T/T
Supply Ability: 100000m per week
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Shape:: Round Pipe Usage:: Liquid Filter
Material:: Polyester coated with TPU membrane Bag size:: Customized
Technics:: Nowoven Needle Punched Place of origin:: Zhejiang, China
লক্ষণীয় করা:

washable filter media

,

woven filter fabric



Needle Punched Felt Filter Coated with White Color TPU Membrane CIPP System




Quick Detail:

Normal temperature flue gas filtration felt
100% polyester
1.5mm to 3mm thickness
Weight from 350 to 800s
Width 2.1 meter maximum
High porosity ,good air permeability
Good price quality
Laminated compound,grads counterchange


Description:

High efficiency of removing dust particle
Easy clear and long useful life
Smooth surface after Singeing,Heat setting,Calendering.


Performance parameters:



Weight(g/m2) 500~550
Thickness(mm) 2.3~2.5
Air permeability(m3/ m2/min) 18~13

Tension at break
(N/5×20cm)

Warp >900
Weft >1200

Elongation at break
(%)

Warp <35
Weft <50

Working temperature
(℃)

Continuous 130
Instantaneous 150
Anti-acid Good
Anti-alkali Common
Anti-abrasion Good
Post treatment Thread burning,surface smoothing or coating etc




















Fibre Types Continuous operating temp*

Designation

Resistance to Hydrolysis Resistance to Acids Resistance to Alkalis Resistance to Oxidation
Polypropylene 90℃-95℃ PP excellent excellent excellent restricted
Polyacrylnitrile homopolymer 125℃-140℃ AC good good moderate good
Polyester 110℃-130℃ PE restricted moderate restricted good
Polyphenylene sulfide 190℃-200℃ PPS excellent excellent excellent restricted
m-Aramide 200℃-220℃ NO moderate moderate moderate moderate
Polyimide 240℃-260℃ P84 good moderate moderate good
Polytetrafluorethylene 250℃-280℃ PTFE excellent excellent excellent excellent




Specifications

polyester needle punched filter cloth
1.PET fiber&PET scrim
2.Antistatic etc. treatment are available
3.For filter bag etc.



polyester needle punched filter cloth


1) It is a normal temperature filtration material with rational structure and superior performance.
2) Material: 100% polyester fibre
3) Weight (gsm): 500
4) Thickness (mm): 1.8
5) Tensile strength (n/5x10cm): (warp) 1,900, (weft) 2,150
6) Tensile elongation (%): (warp) <50, (weft) <55
7) Permeability (10-3cbm/sqm.S): 150~350
8) Working temperature: (continuance) 130°C, (instant) 150°C
9) Surface treatment: singeing, heat setting.
.Filter Cloth,Polyester Needle Felt,filter fabric




Applications:

Chemical processing:dryers in the pigment,plastic and catalyst industries
Minerals processing:dryers and finish mills in the cement industry
Metal processing:process collectors in the lead,primary base metal,and foundry industries


Needle Punched Felt Filter Coated With White Color TPU Membrane CIPP System 0Needle Punched Felt Filter Coated With White Color TPU Membrane CIPP System 1Needle Punched Felt Filter Coated With White Color TPU Membrane CIPP System 2




FAQ

1. Payment
30% TT advance and balance 70% before shipment.


2. Shipping
By sea or by air


3. MOQ
MOQ varies for different product, some products have no request on MOQ.


4. Lead Time
In general, within 15 days after payment.


5. Samples
We can offer samples according to customers requirements.


6. Quality
We have engineers and technicians carry out quality control.

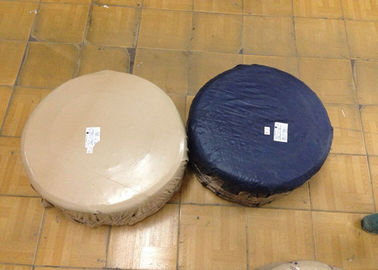

7. Packing
Normally, our products are packed with polybag, woven bag and carton.
